Box type spring tempering furnace

The box type spring tempering furnace is suitable for heat treatment of small and medium-sized products, can produce high-quality products with even temperature distribution, and can control temperature and time depending on the processing cycle to perform heat treatment under various temperature conditions.

Product Use
  • Tempering of springs
    Tempering of presses
    Tempering of small parts
Product Features
  • We have expanded our customers' choices with standardized specifications.
    Uniform temperature uniformity in the chamber and excellent thermal efficiency
    Applied a drawer (tray) for convenience of entry and exit of objects
    Furnace structure design suitable for small and medium-sized products.
    Secured the reliability of furnace performance through the delivery of multiple products
Standard Specifications
Operating Temperature
: 150℃ ~ 480℃
Processing Nerve
: Ø0.5~Ø2.0
SIze Specifications
MODEL Dimensions (WxHxL) Drawer (Tray) Dimensions (WxHxL) Motor(HP) FAN (Inch) Electrical Capacity
SNB-05 720x1090x740 340x60x500 1/2 3”x9” 6Kw
SNB-07 770x1110x940 380x60x700 1/2 4”x10” 9Kw
SNB-09 770x1110x1140 380x60x900 1/2 4”x10” 11Kw
SNB-10 770x1090x1240 380x60x1000 2 4”x12” 12Kw
SNB-11 770x1090x1340 380x60x1100 2 4”x12” 14Kw
Type of Product
SNB-07

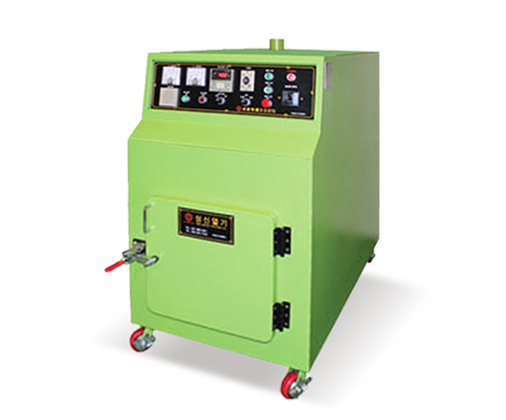

Front of medium/small box type spring tempering furnace

SNB-07

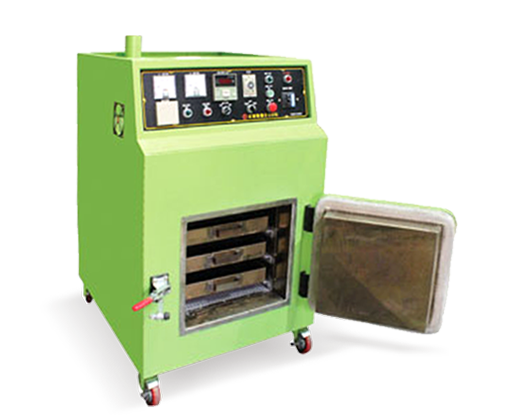

Inside of medium/small box type spring tempering furnace

SNB-09

Front of large box type spring tempering furnace

SNB-09

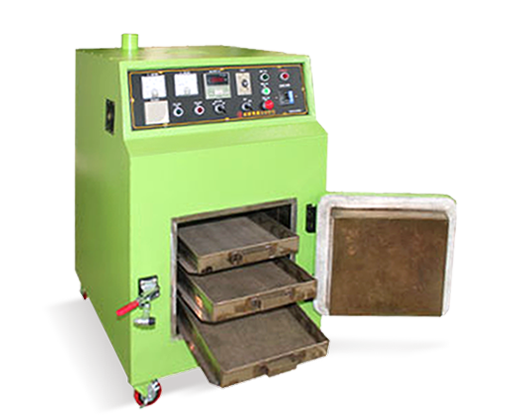

Inside of large box type spring tempering furnace
