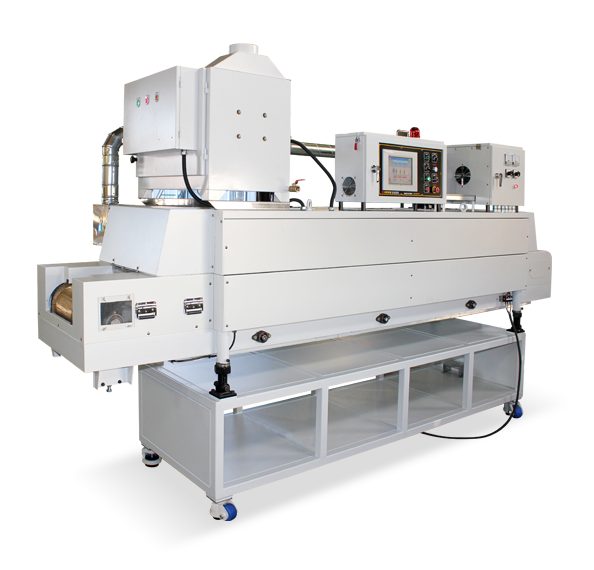

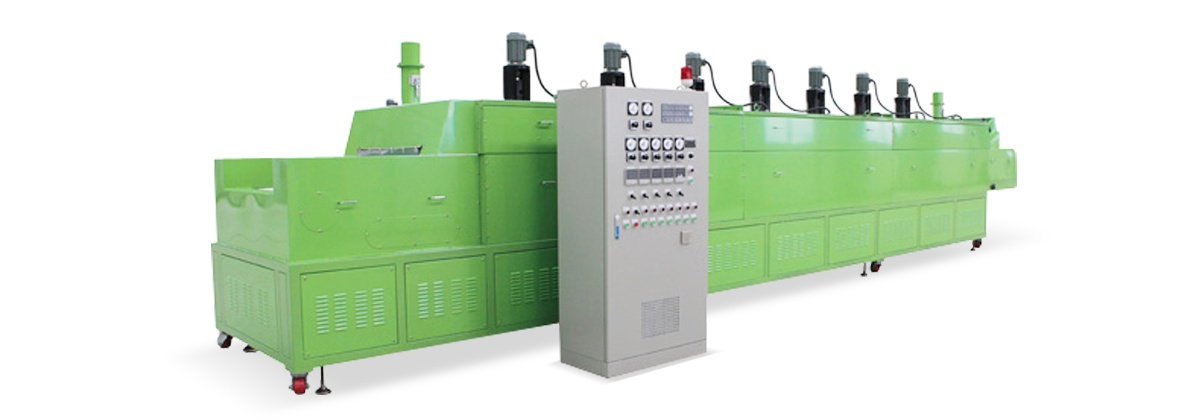

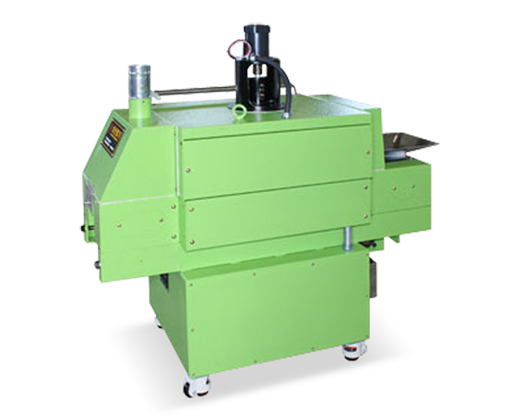

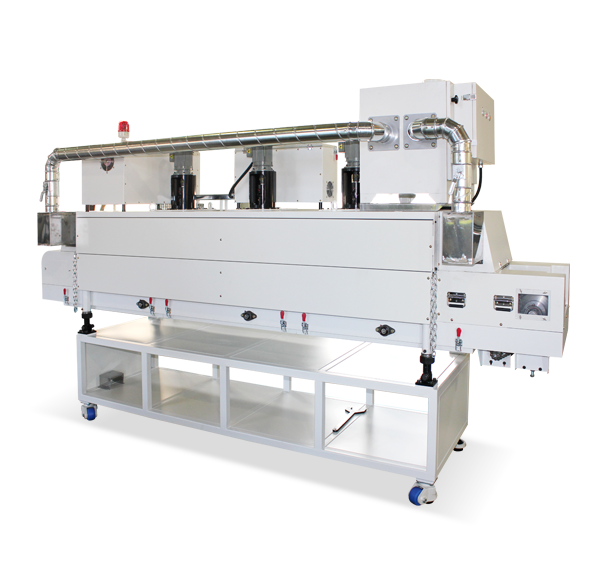

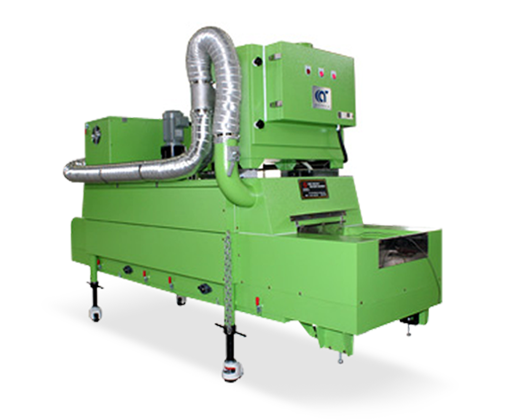

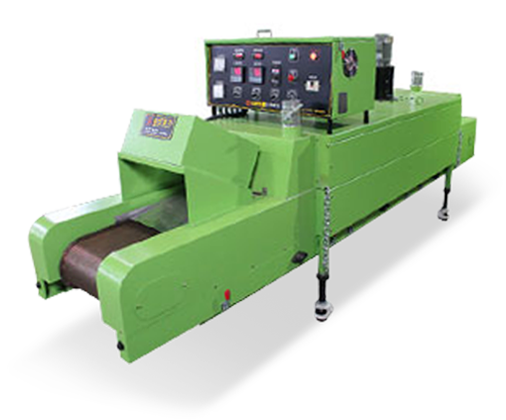

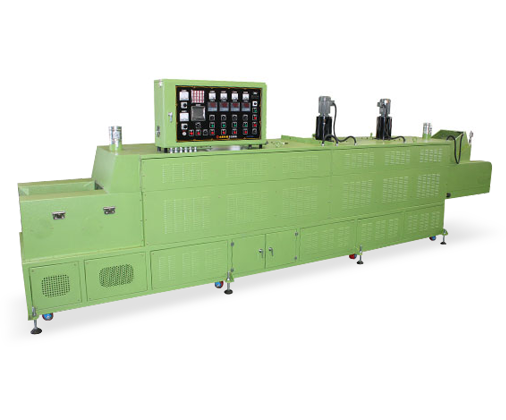

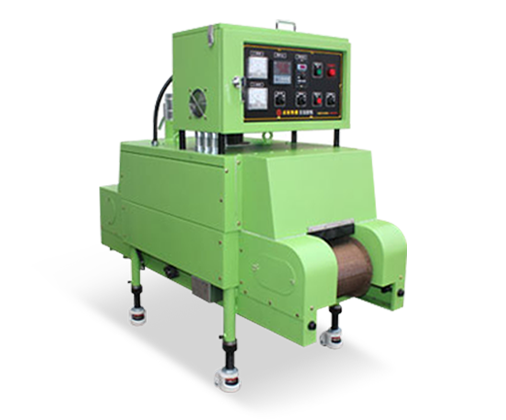

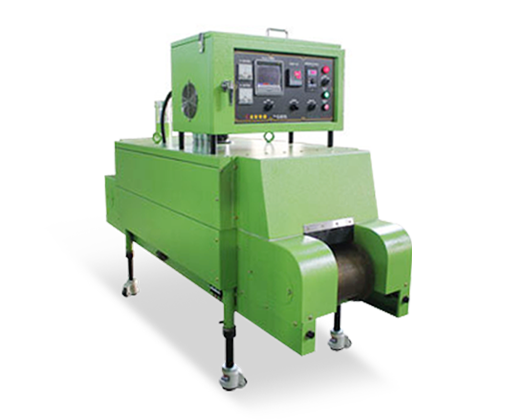

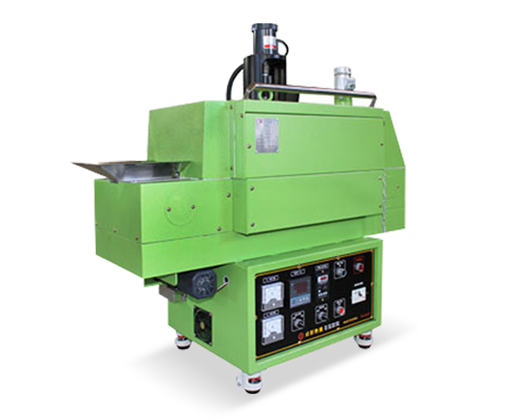

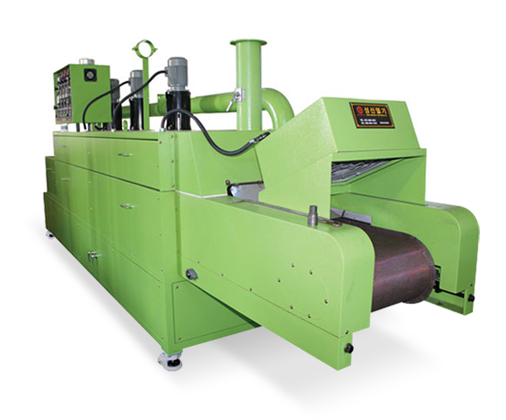

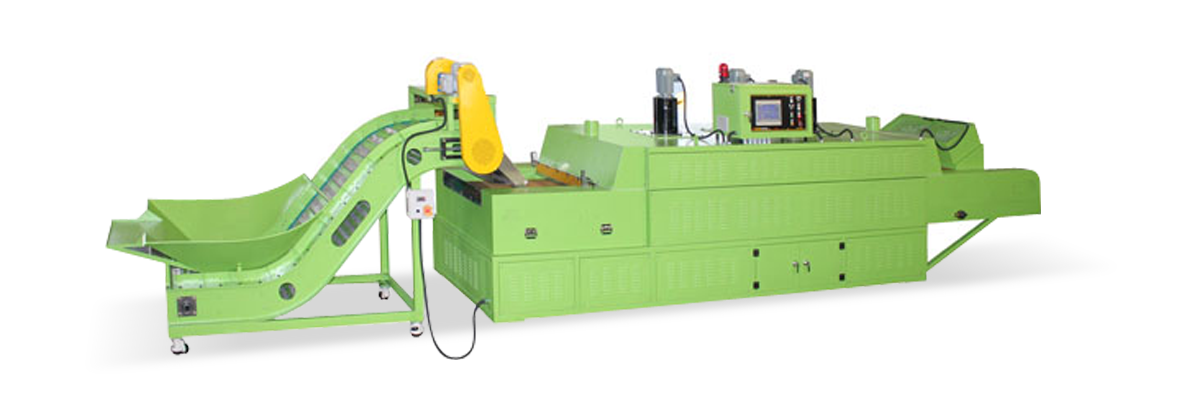

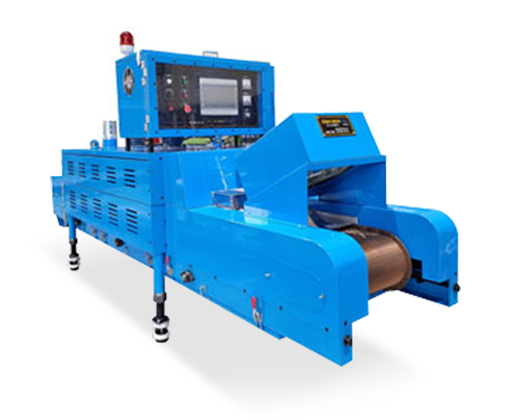

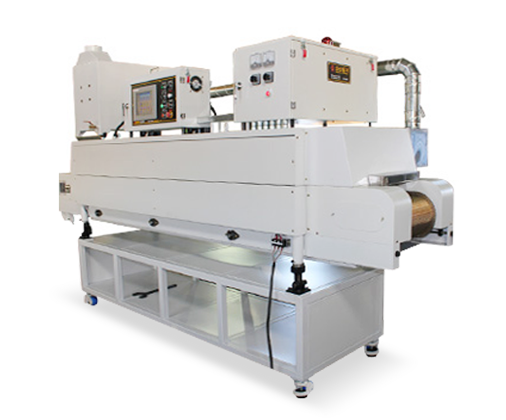

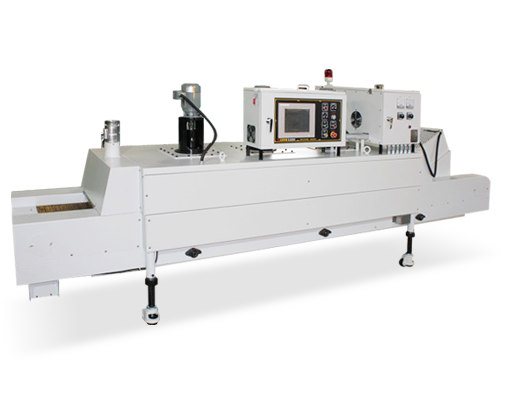

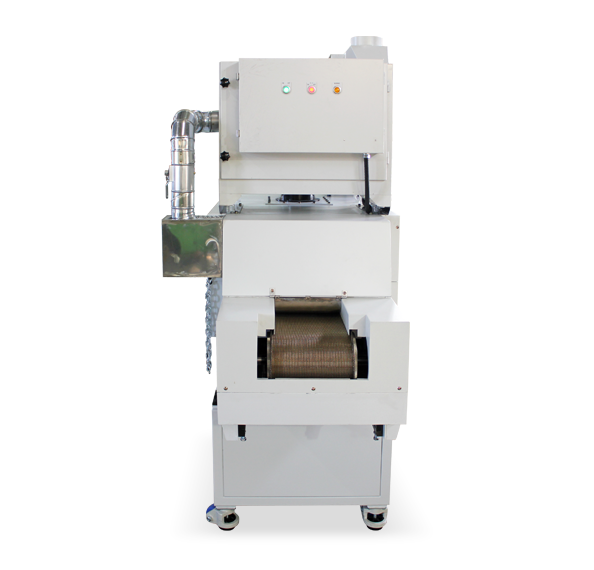

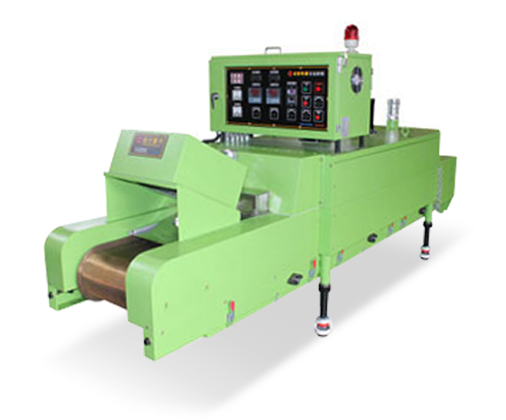

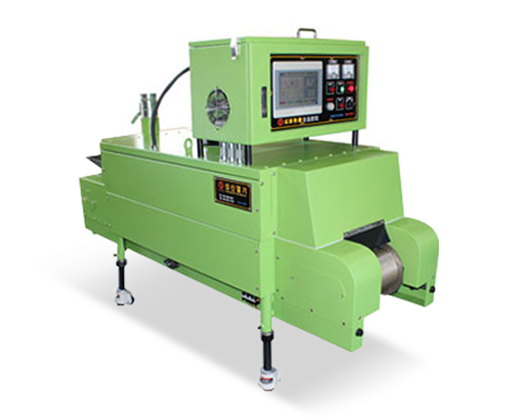

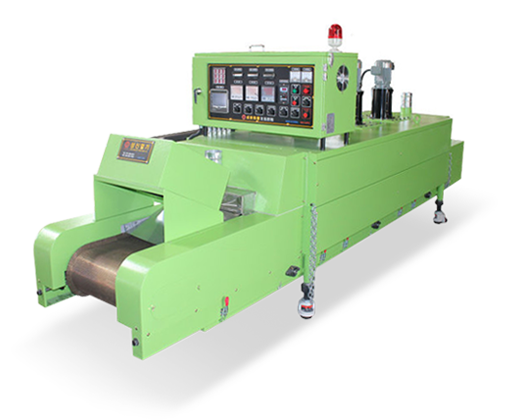

Mesh Belt Type Spring Tempering Furnace

It is used in mass production sites with the advantage of continuously processing a large number of products in the form of performing a heat treatment process while continuously moving using a driving device with the heat treatment conditions of the object set.

Product Use
  • Tempering of springs
    Tempering of presses
    Tempering of automotive parts
    Tempering of electronic components
Product Features
  • Continuous productivity structure consisting of supply part, furnace body part, and cooling part
    Controls the processing speed and processing time according to the conditions of the object by using the mesh belt conveying method
    Excellent temperature uniformity and energy saving according to the heat circulation method in the furnace.
    Manufactured for the convenience of operation of the furnace, the performance of the furnace, and the ease of maintenance
    Furnace performance certified by expanding customer selection with standardized specifications and delivering multiple products
    Applied for utility model for continuous heat treatment furnace conveying device with push roll (Application No. 20-2208-0002082)
Standard Specifications
Power
: AC 220/380Vx3Øx60Hz
Operating Temperature
: 150℃ ~ 500℃
Processing time
: 2~150 min
Control method
: S.C.R, P.I.D
SIze Specifications
MODEL Belt width (Effective width) Entrance width Entrance height Heating length Dimensions (WxHxL) Electrical Capacity Processing time (min) Processing Nerve (Ø) Note
SNM-04(B) 100 70 50 600 550x1300x1210 4kW 2~15 0.1~1.5
SNM-06 200 170 70 850 700x1300x1660 6kW 3~20 0.1~2.0
SNM-10 220 190 100 1300 730x1350x2260 9kW 5~30 0.1~3.0
SNM-15 300 270 100 1500 810x1400x2550 15kW 5~20 0.1~3.0
SNM-18 420 390 110 1722 930x1500x2995 18kW 5~25 0.1~3.5
SNM-18F 420 390 110 1722 930x1500x3695 18kW 5~25 0.1~3.5 Cooling FAN
SNM-22F 420 390 110 2000 930x1500x3960 22kW 7~30 0.1~4.0 Cooling FAN
SNM-28F 450 420 110 2435 960x1500x4395 28kW 7~30 0.1~5.0 Cooling FAN
SNM-30F 450 420 120 3000 960x1520x4960 30kW 7~40 0.1~8.0 Cooling FAN
SNM-35F(B) 500 470 130 3045 1020x1900x5375 35kW 7~40 0.1~8.0 Cooling FAN
SNM-40F(B) 500 470 130 3600 1080x2050x6100 40kW 7~40 0.1~10 Cooling FAN
SNM-55F(B) 520 490 150 4500 1100x2050x6900 53kW 7~50 0.1~12 Cooling FAN
SNM-70F(B) 550 520 180 6000 1130x2090x8900 70kW 7~70 0.1~16 Cooling FAN
SNM-100F(B) 600 570 200 8000 1180x2100x10900 100kW 7~100 0.1~20 Cooling FAN
SNM-140 1000 220 8000 1570x1800x10720 140kW 10~40 - Cooling FAN
